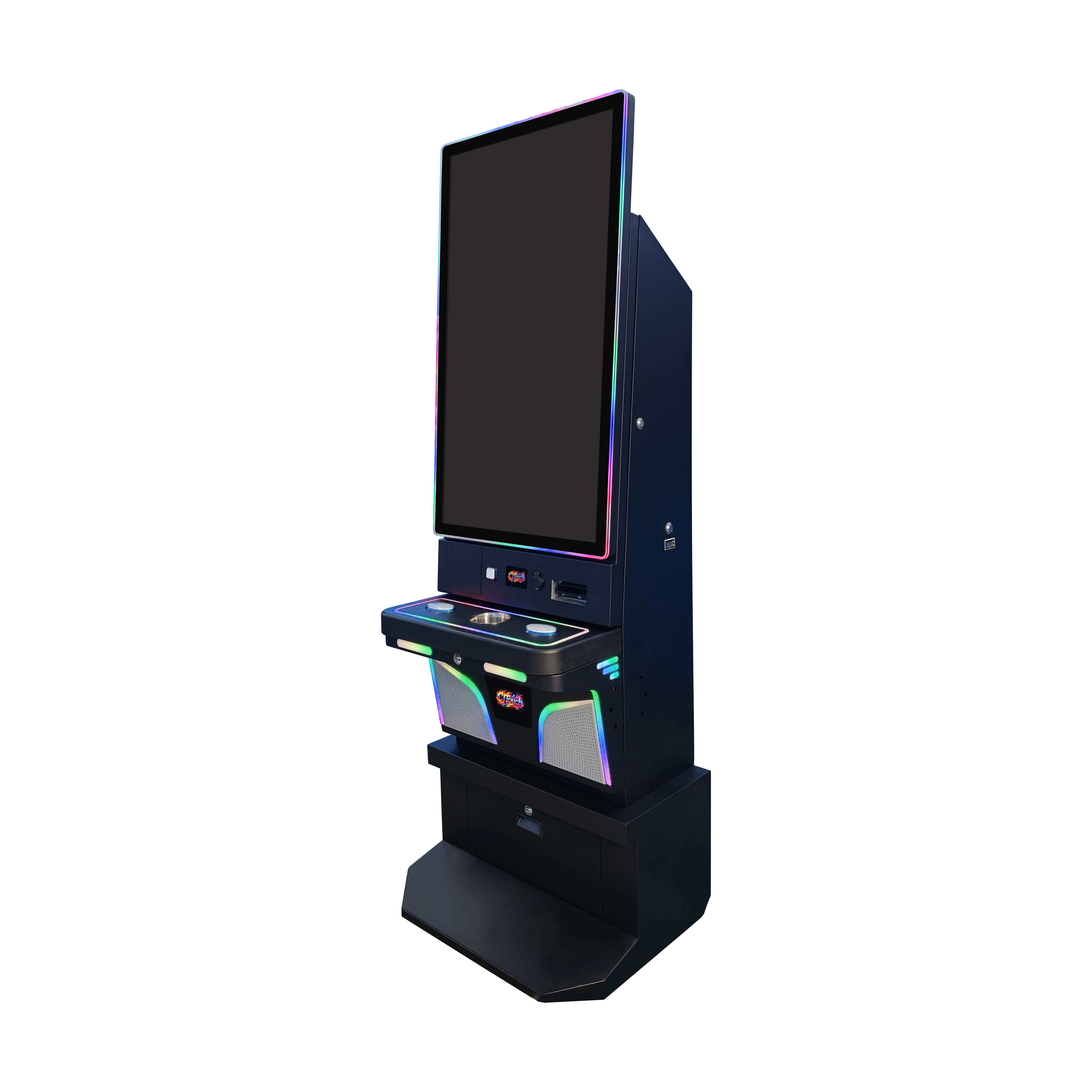

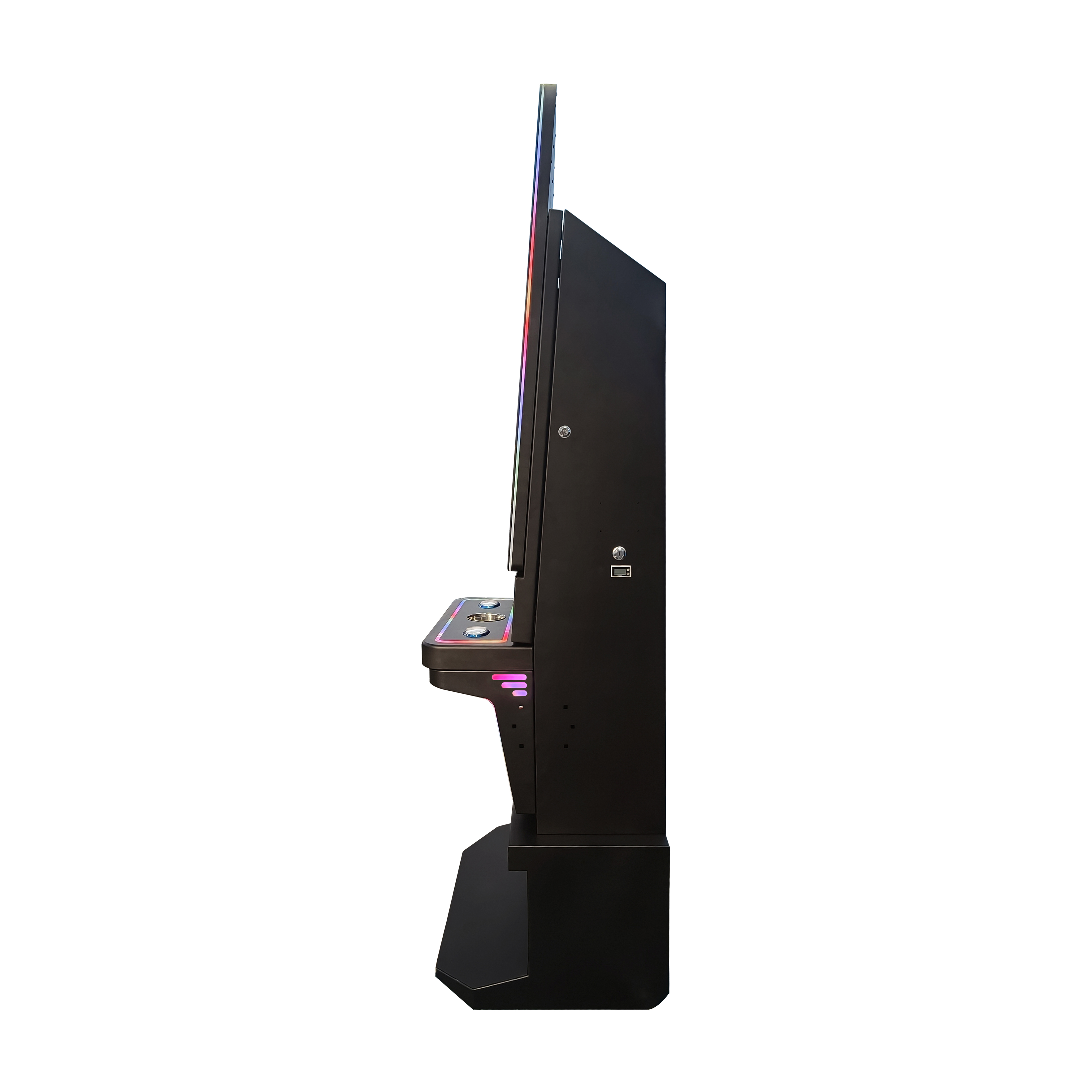

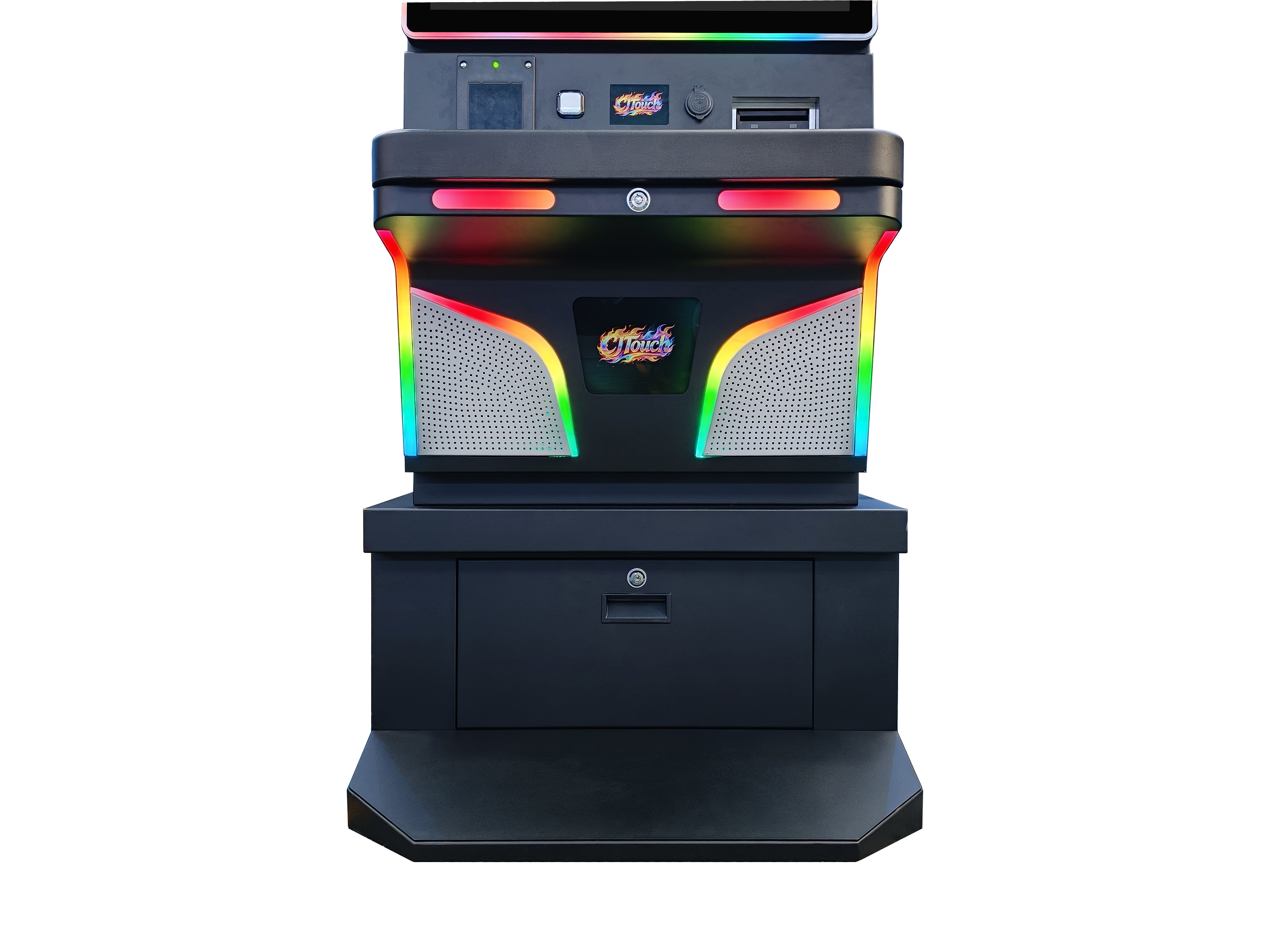

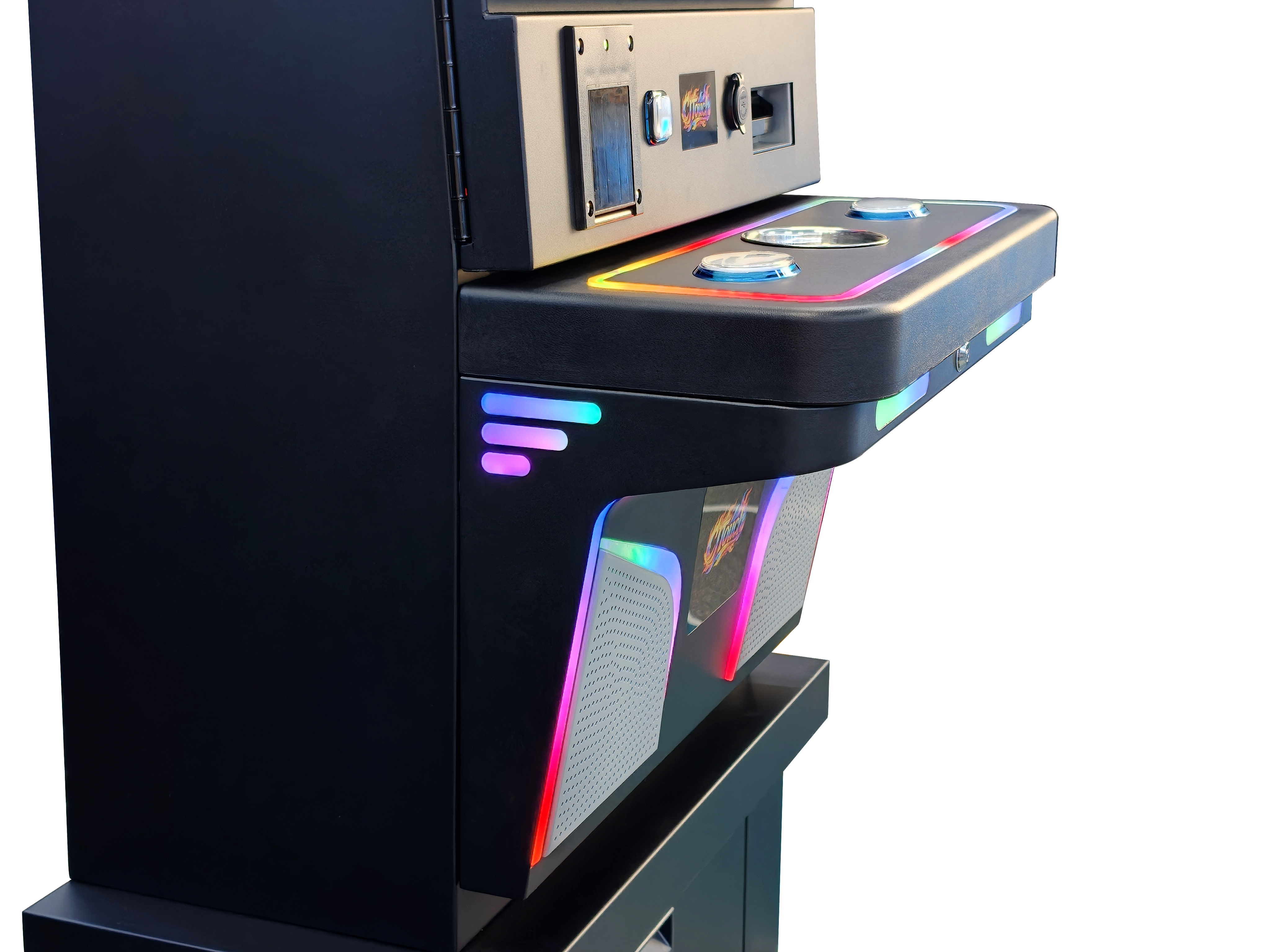

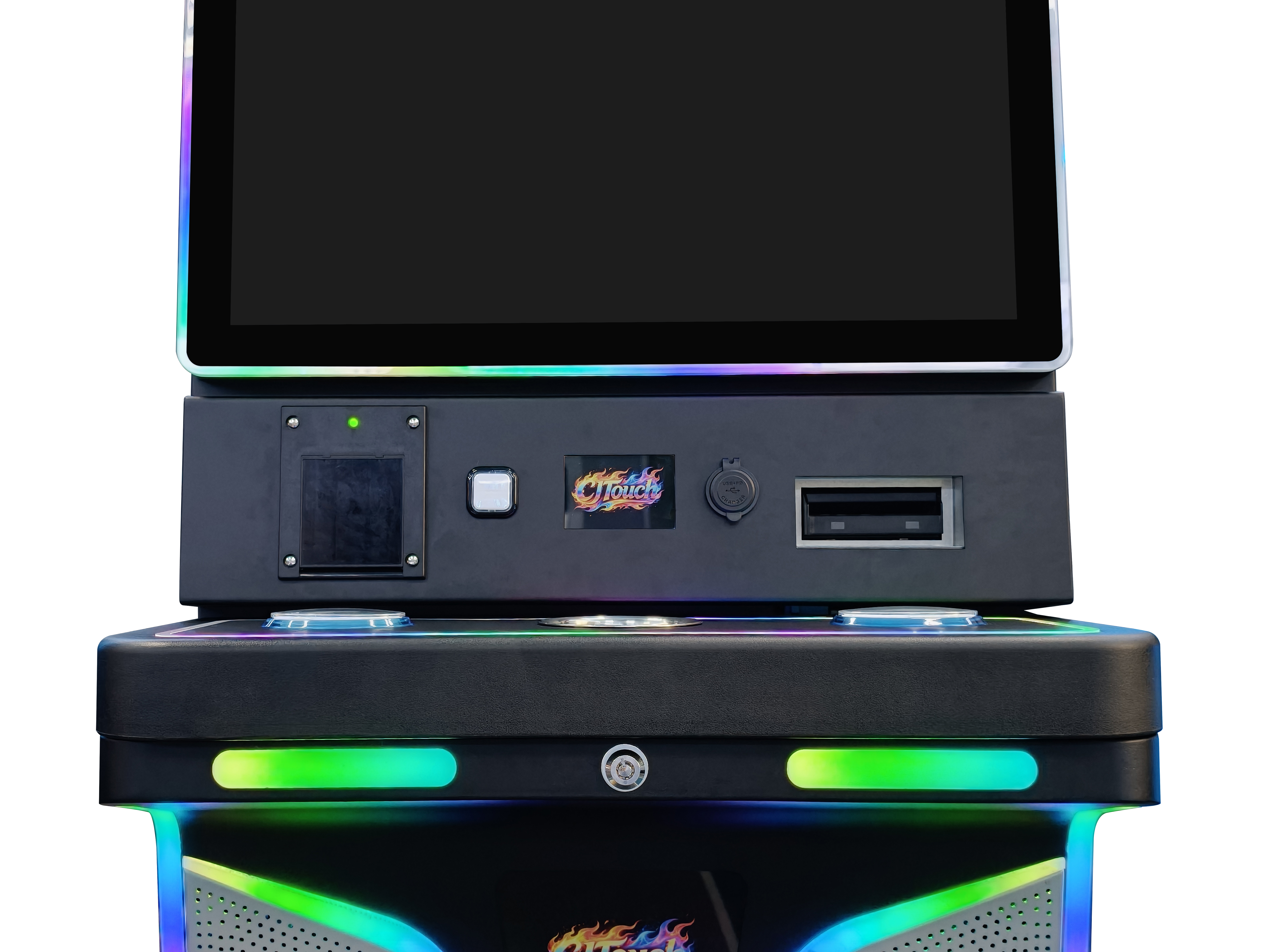

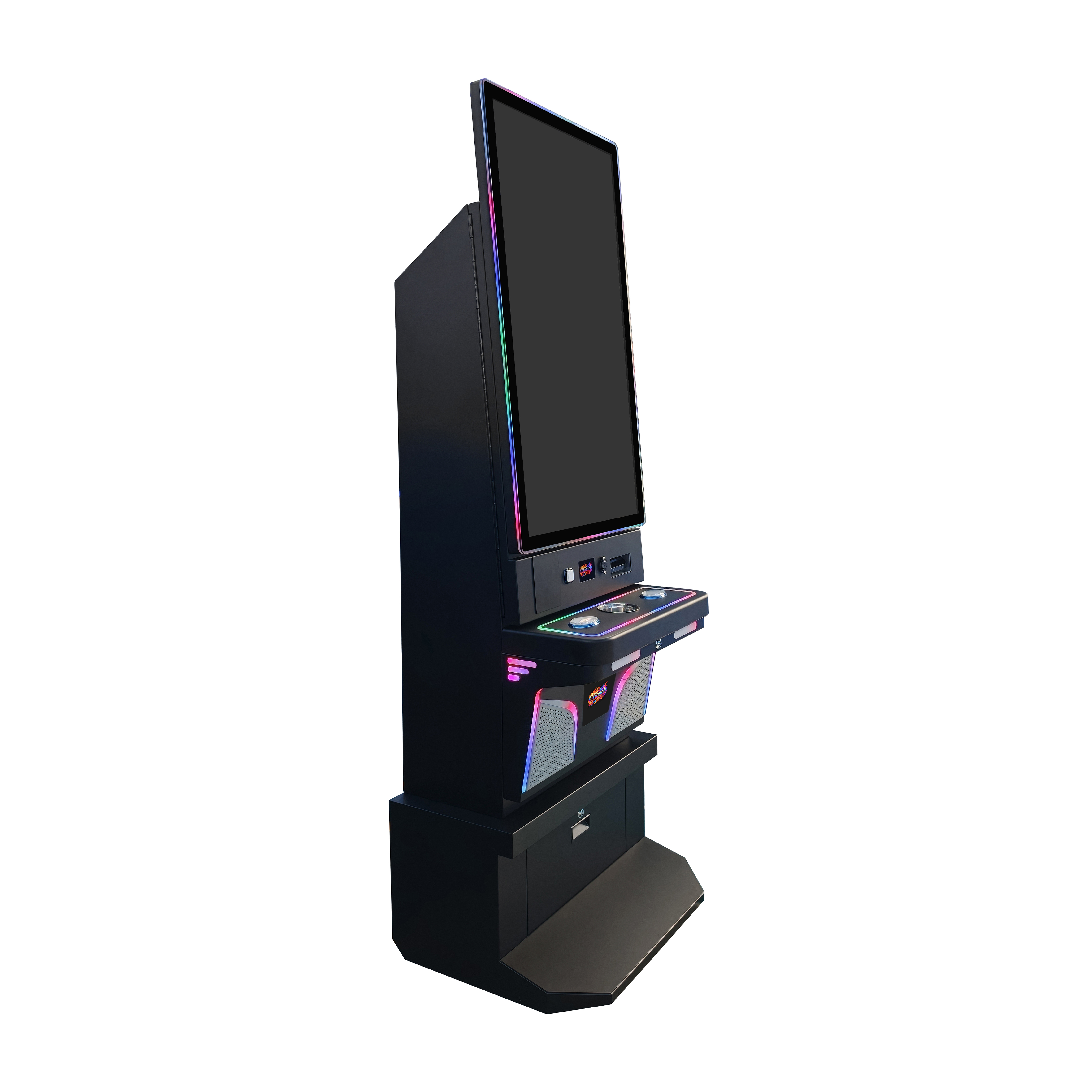

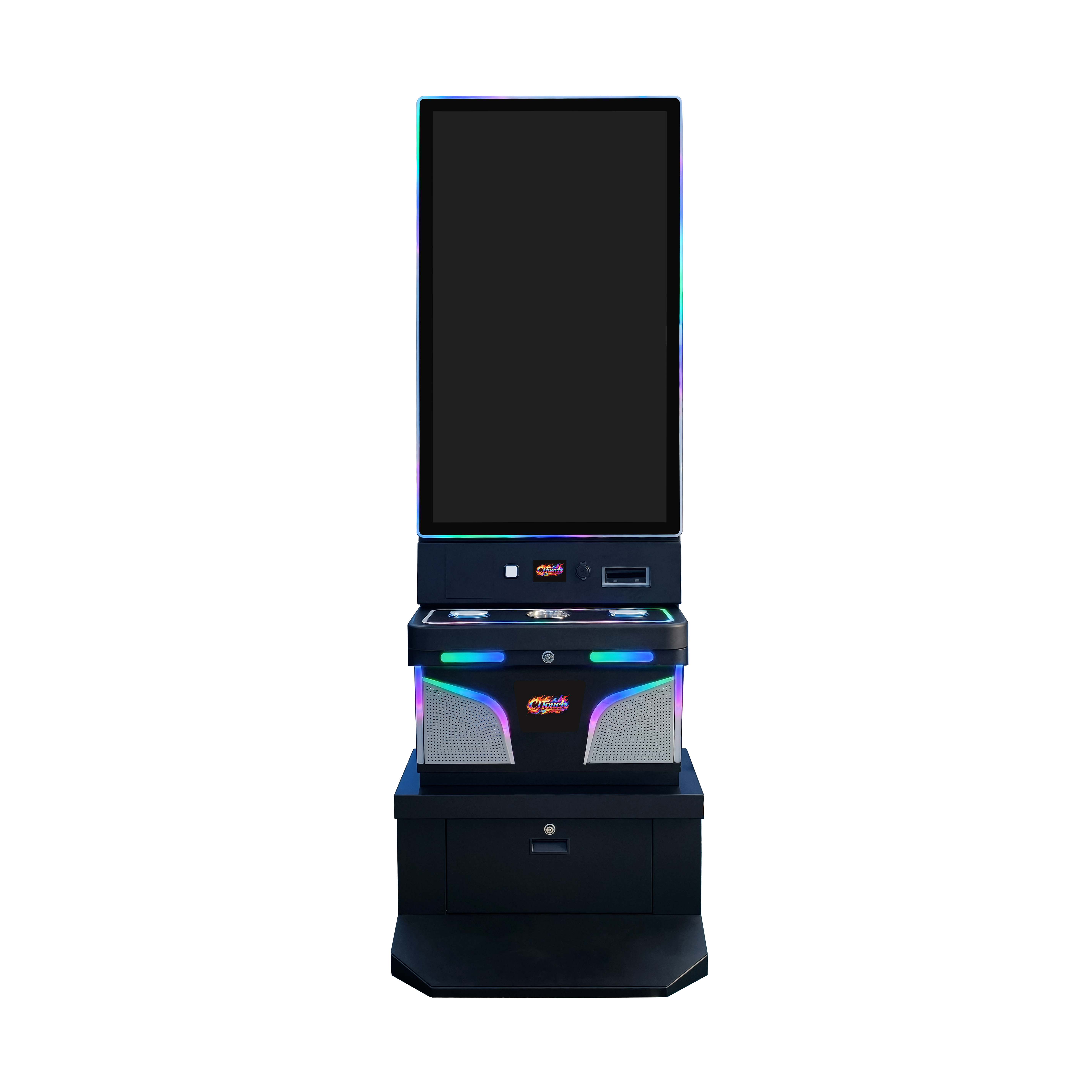

Commercial Vertical Flat Screen 43-inch Multi Touch Monitor Gaming Machine With Metal Cabinet
Key Features:
- Featuring a vertical, high-definition screen design with dynamic RGB light strips, it greatly enhances the gaming atmosphere.
- The chassis incorporates a high-efficiency cooling fan, significantly reducing the high-temperature failure rate and substantially extending the overall lifespan of the machine.
- The rack is equipped with security locks, facilitating the storage of funds and management of components, while also ensuring the safety of property in commercial settings.
Specification
|
Appearance |
Black metal cabinet featuring LED flat screen monitor |
|
PCB Game Board |
Fusion Series and FireLink Series (optional) |
|
Bill Acceptor |
ITL NV200, JCM UBA (optional) |
|
Ticket Printer |
ICT GP-58, PTI PHOENIX, TransACT Epic 950 (optional) |
|
Custom Logo Sign |
Customizable Backlit Logo Sign and Stainless Steel Nameplate (optional) |
|
Centralized Credit & Print Management Kit |
Includes Ciao Baby, Mutha Goose, and Fledgling Board (optional) |
|
Lighting |
RGB Color Changing LED Strip Light surrounding the monitor |
|
|
Streamlined RGB Color Changing LED lights along the exterior |
|
|
4 High Brightness COB Light Strips inside the cabinet |
|
Electronics Accessories |
94mm × 63mm oval round Play Button ×2 (customizable artwork) |
|
|
36mm square Refund Button (customizable artwork) |
|
|
Electronic Counter ×2 (Mechanical Counter optional) |
|
|
PD+3.1A Charging Port |
|
|
premium Power Supply Units ×3 |
|
|
Scanner Module (optional) |
|
LOCKS |
Main door, Belly door, Base door, Logic Box door, Bill Acceptor door: 20mm (L) × 19mm (Dia) Tubular Cam Lock |
|
|
Logic Box door (outside) and Cabinet side: 30mm (L) × 19.2mm (Dia) Electric Switch Lock |
|
Power |
Input signal specifications (Voltage/ Current/Frequency):100-240V / 8-4A / 50/60Hz Actual current draw depends on machine configuration and addition of supplemental equipment (including but not limited to system monitoring equipment, process control equipment, and service equipment). |
|
Power Consumption |
ON (cabinet + monitor + power brick): 170W OFF (cabinet + monitor + power brick) : 0.5W |
|
Weight |
Final weight depends on configuration; please contact engineering for confirmation. |
|
Dimension (typical) |
Height:781.1"(1984mm) |
|
Temperature |
Operating: 10 °C to 40 °C (50 °F to 104 °F); Storage: -20 °C to 60 °C (-4 °F to 140 °F) |
|
Humidity |
Operating: 20% to 80%; Storage: 10% to 95% |
|
Mounting Options |
Mounted Vertically |
|
Warranty |
1 year standard |
|
Mounting Options |
Mounted Vertically |
|
Warranty |
1 year standard |
